Shrink Fitting Machine Shrink Fitting Machine Shrink Fitting Machine Shrink Fitting Machine Shrink Fitting Machine

Shrink Fitting Machine

100000 INR/Unit

Product Details:

X

Shrink Fitting Machine Price And Quantity

  • 1 Unit
  • 100000.00 - 1000000.00 INR/Unit
  • 100000 INR/Unit

Shrink Fitting Machine Trade Information

  • 50 Unit Per Month
  • 7 Days
  • Wooden boxes & customized packing also available.
  • All India
  • ISO 9001:2015

Product Description

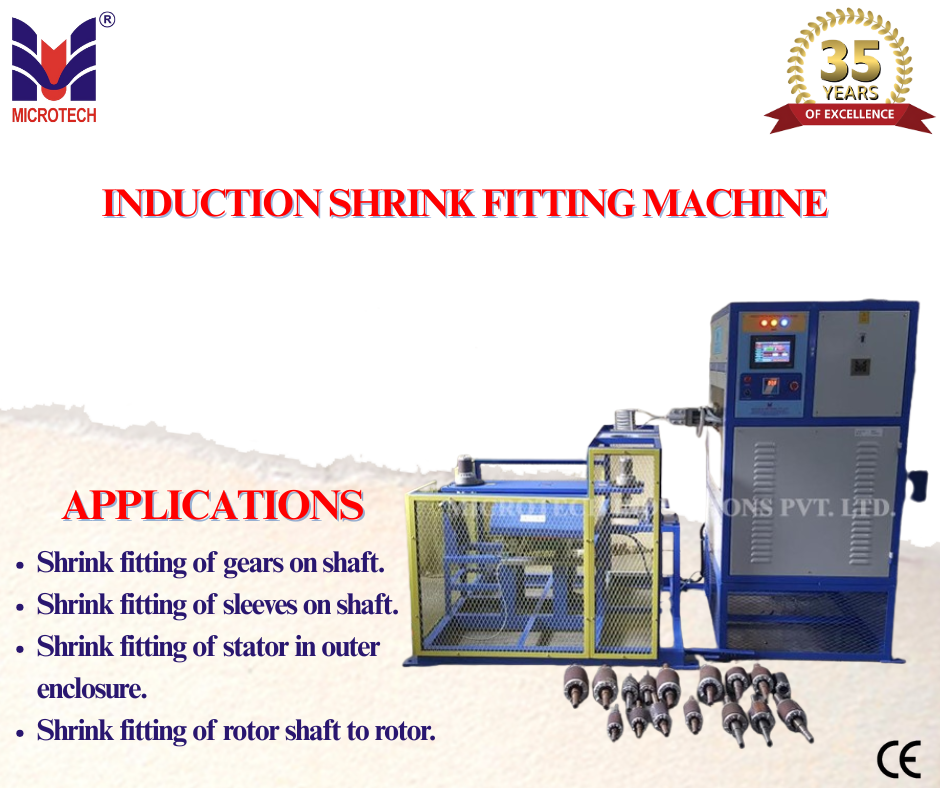

 Shrink Fitting

Induction Shrink Fitting is a process where a union is formed using the phenomenon of expansion during the heating of the material and contraction during the cooling of material. Induction Shrink Fitting is useful in forming the mechanical assemblies and delicate parts where mechanical pressure cannot be applied. Residual deformation and stress reduction, fast and repeatable process using the flameless technique, easy operating features and state of the art are the main advantages of Microtechs Induction Shrink Fitting Machines.

Also union / mechanical assemblies formed by Induction Shrink Fitting can also be dis-assembled by selective heating of the components. Microtech make Induction Shrink Fitting helps to get a uniform heating with energy saving features

Application of Induction Shrink Fitting Machines:

  • Shrink fitting of gears on shaft.
  • Shrink fitting of sleeves on shaft.
  • Shrink fitting of stator in outer enclosure.
  • Shrink fitting of rotor shaft to rotor.
  • Removal and re-fitting of a gas turbine impeller
  • Assembly of high precision roller bearings
  • Shrink fitting of 2- stroke crank shafts for ship engines.


Specifications:

Power range

1-5kw

05-15kw.

15-50kw

50 -200kw

Frequency range

15-400khz

15-100 khz

15-30 khz

15 30 khz

Adaptation to change load charecteristics

Yes

Yes

Yes

Yes

Power control

Auto

Auto

Auto

Auto

Load sensed self tuning

 yes

Yes

Yes

Yes

Size (mm)

W-170
b-495
h-350

W-530
b-640
h-1110

W-620
b-725
h-1370

W-1000
b-1090
h-1675

Input power range

Single phase
230v/50hz.

Three phase
440v/50hz

Three phase
440v/50hz

Three phase
440v/50hz
